Fussen

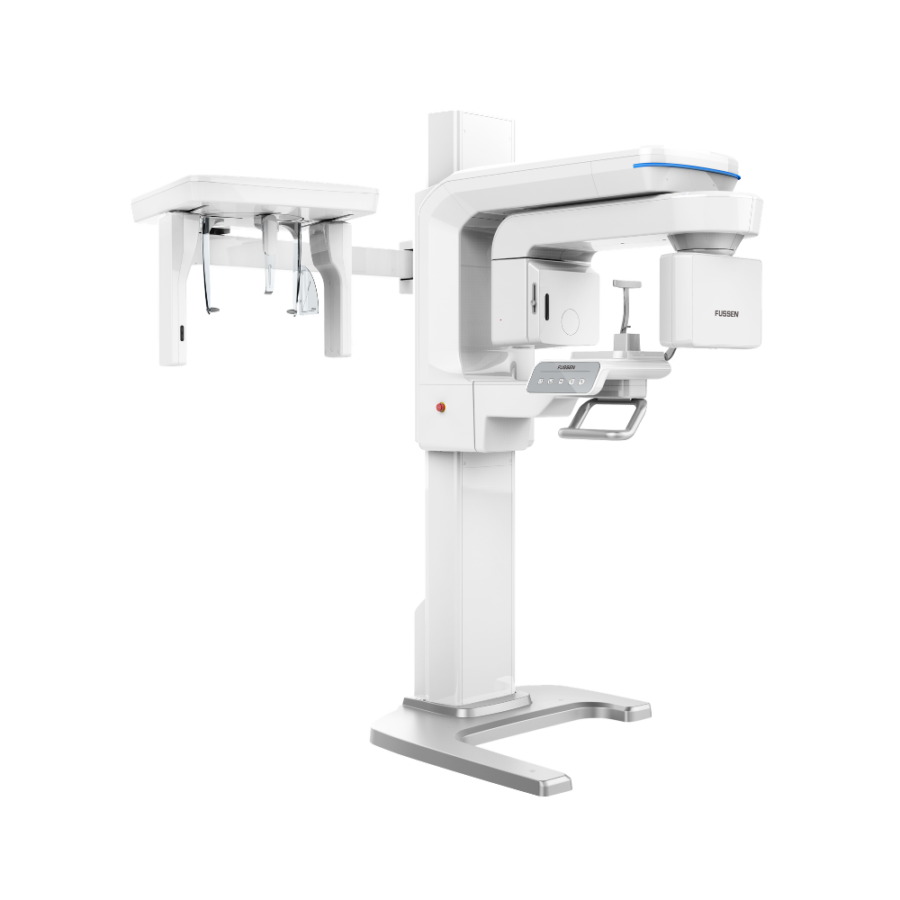

Rubix XSmart

A new entry-level CBCT

Designed for modern implant workflow.

From €39.000

One System, Four Functions - Infinite Possiblities.

The Rubix XSmart integrates panoramic, CT, Model Scan and Cephalometric (optional) into a single compact system. Simplifying the workflow, saving space, building a true digital ecosystem from diagnosis to treatment. Designed for clinics upgrading from panoramic imaging.

Een offerte aanvragen Brochure

Easy to Use

Simple operation for daily workflow.

Easy with AI

Intelligent tools for faster diagnosis.

Easy to Grow

Flexible FOV for expanding clinical needs.

Comprehensivce FOVS for every clinical scenario!

5*5 cm

Focused field for endodontics and single-implant precision.
Minimal radiation exposure
Perfect for pediatric imaging, root canal treatment and single-implant assessment.

9*9 cm

Perfect for bilateral posterior regions and implant planning.
Balanced coverage and clarity for dual-arch implant assssment.
This mode offers diagnostic accuracy at reduced radiation levels.

12*10 cm

Comprehensive view for orthodontic and full-arch assessment.
Provides complete dentition coverage for othodontic diagnostics, eruption guidance, and pediatric jaw development.

16*10 cm

Full-arch coverage for implant and sinus evaluation.
Covers the entire jaw and sinus regions with exceptional definition, making it ideal for implant planning or surgical navigation.

Advanced Hardware, Exceptional Imaging

16-bit Grayscale

Capture the finest contrast differences with true 16-bit depth, revealing every subtle anatomical detail.

50 µm Voxel Resolution

Ultra-fine voxel resolution ensures clinical-grade sharpness for precision diagnostics and surgical planning.

120 kV High-Voltage Generator

High-energy imaging for stable output and reduced noise, ensuring clarity even in challenging anatomy.

Smart Algorithms Shape the Future of Imaging

Equipped with next-generation reconstruction and correction technologies, Rubik XSmart delivers crystal-clear images even under challenging conditions. Each scan is automatically optimized through advanced AI and algorithmic processing.

Metal Artifact Reduction (MAR)

AI-Powered Low-Dose Imaging

Noise Reduction & Beam Hardening Correction

Geometric Correction

Motion Correction Algorithm

Multi-Layer Panoramic Reconstruction

TECHNISCHE SPECIFICATIES

Afmetingen

CT	FOV & Voxel Size	1610, 1210, 99 and 55
PANO	Standard Pano & Pano ROI	✓
PANO	TMJ Mode	Open and close
CEPH (optional)	Lateral/ AP	✓
	Half Lateral / AP CEPH	✓
	Carpus	✓
	Water View	✓
Tube Parameters	Beam Operation Mode	CT-Pulsed, PANO & CEPH - continues exposure
	Anode Voltage	60-120 kV
	Anode Current	2 - 10 mA
	Brandpunt	0.5 mm
	Blootstellingstijd	CT-15s; CT(quick mode)-10s PANO-15s; PANO(child mode)-7s;PANO(TMJ)-6s; CEPH(full)-15s; CEPH(half)-10s; CEPH(quick mode)-4.8s
	Totale filtratie	2.5 mm AI
Detector Parameters	Detector Pixel Dimensions	CT & PANO: 100 μm, CEPH: 100μm
	Contrast Resolution (grayscale)	16 bits
	Detector Type	CT & PANO: FPD (A-Si), Scan CEPH: CMOS

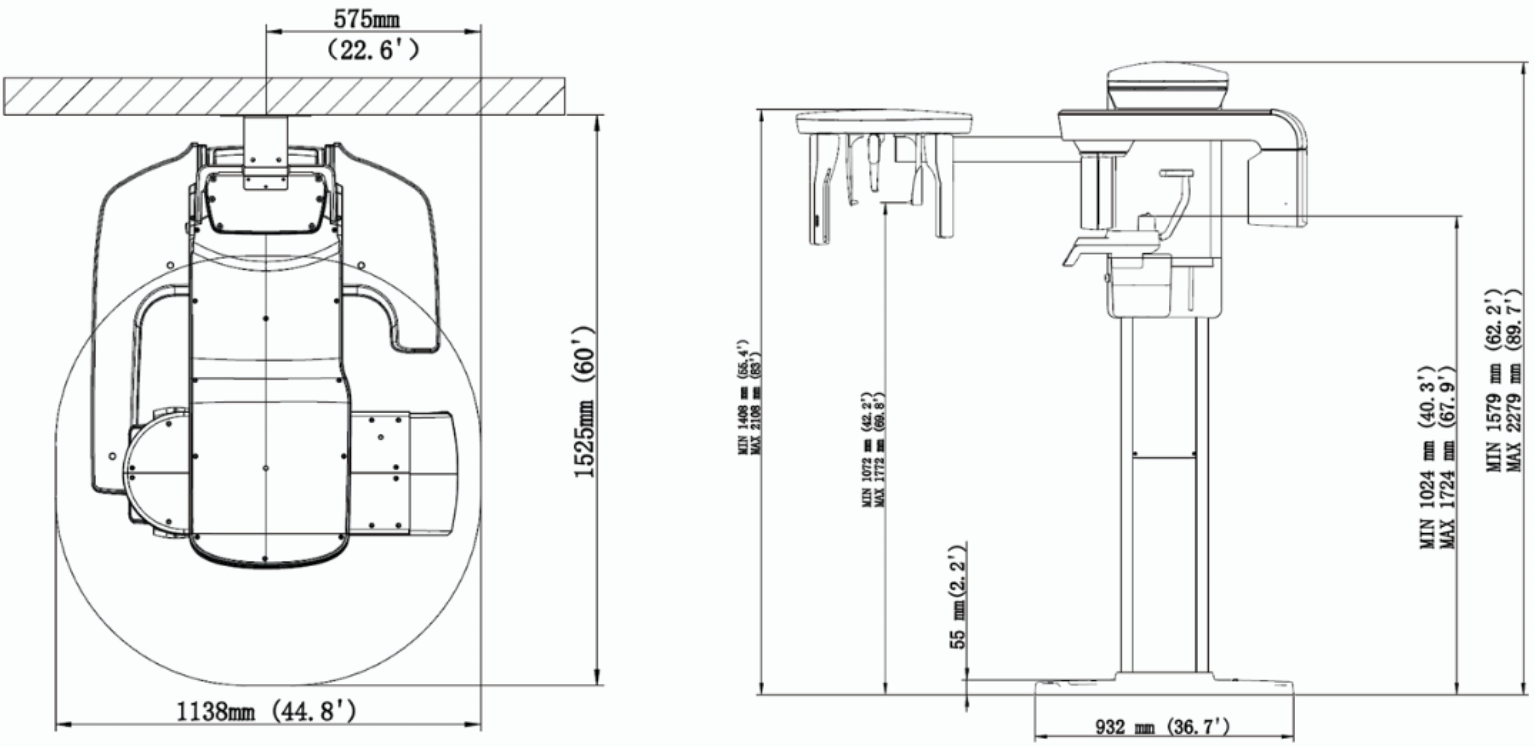

Mechanical Performance Parameters	Dimension	3in1: 1530 (W) x 1150 (L) x 2280 (H) mm 4in1: 1530 (W) x 1900 (L) x 2280 (H) mm
	Gewicht	3in1: 235 ± 10kg 4in1: 260 ± 10kg
	Recommended Installation Space	3in1: 1630 (W) x 1250 (L) x 2350 (H) mm 4in1: 1630 (W) x 2000 (L) x 2350 (H) mm
Software Performance	Supported Protocols	DICOM 3.0, VDDS, CLOUD shared (DentalX)
	Workstation Local Software	Dentalflex + CTflex
	Cloud Software	DentalX
	Reconstructietijd	CT/PANO/CEPH - 45s (without additional algorithem selection)

Model	CBCT	PANO	Model Scan	CEPH
Rubix XSmart				Optional

Standard Workstation Computer

Specificatie	Parameter
CPU Model:	Intel Core i7-12700
Memory Capacity:	Samsung 16GB DDR5-5600 4400Hz
Solid State Drive:	SAMSUNG MZVL8256HEJD-00BH1 256GB
Hard Desk Drive (HDD):	Seagate ST1000DM014-2UB10D 1TB
Dedicated Graphics Card:	NVIDIA GeForce RTX 3050 6GB
Motherboard:	894D HP
Chipset:	Intel Q670
