EN-14 plus Series Rhinolaryngoscopes + HT-1415 Image Processor – Seesheen

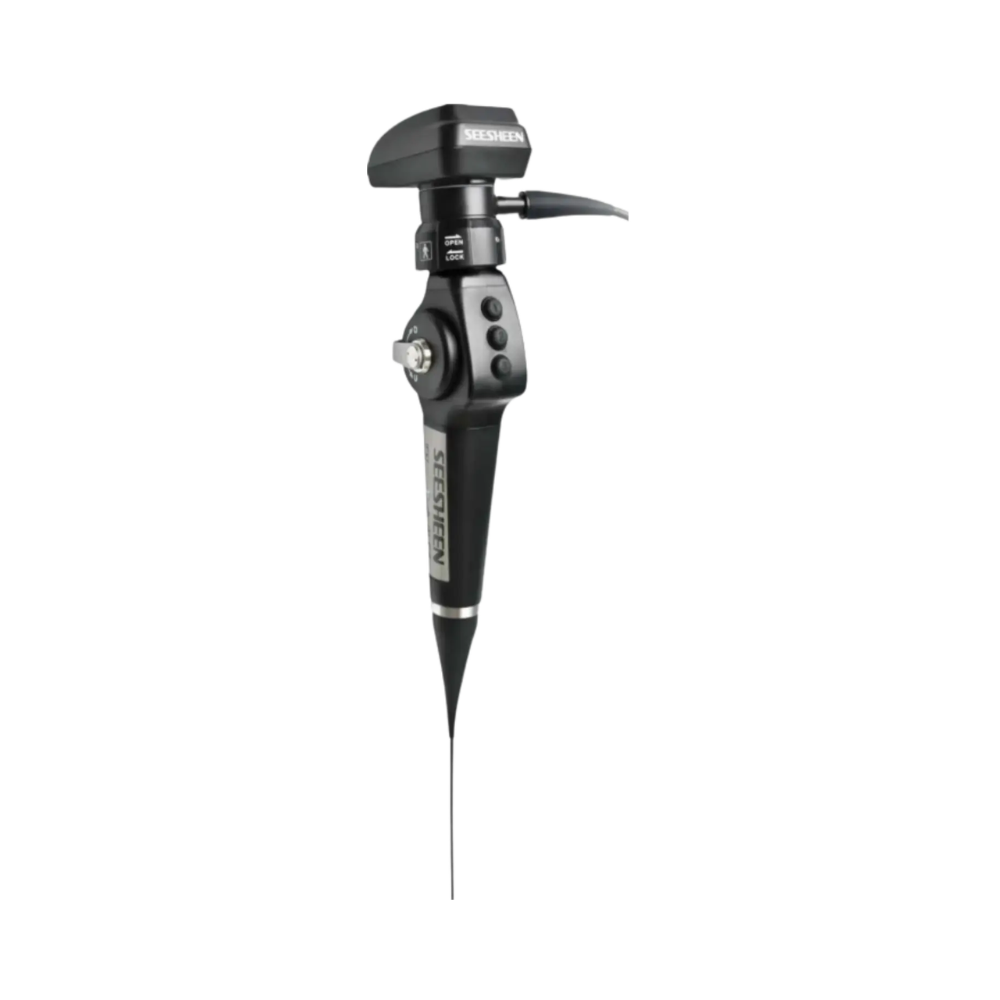

- Video Rhinolaryngoscope EN-14 series

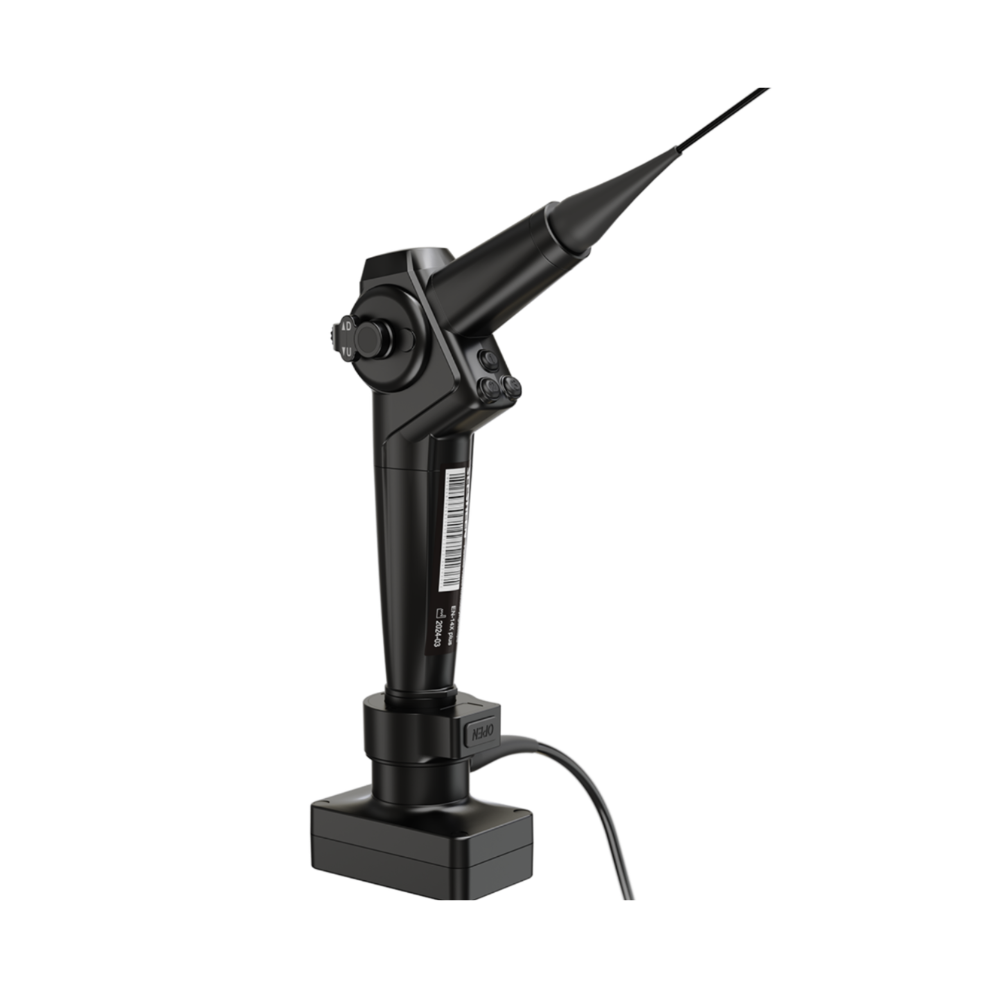

- ‘Pistol Grip’ design
- Multi-functional buttons
- Angle lock
- Slender insertion tube
- Suction valve retainer
- 15.6 inches HD touchscreen
Free shipping for all orders
14 DAYS RETURN TIME
Worldwide shipping available
EN-14 plus Series Rhinolaryngoscopes + HT-1415 Image Processor – Seesheen
EN-14 plus Series Rhinolaryngoscopes + HT-1415 Image Processor – Seesheen.
Key Features:
- ‘Pistol Grip’ design, that operates more comfortably and meets different clinical applications scenarios (applicable to certain models)
- Multi-functional buttons that can be customized for individual needs.
- Angle lock, bending angle locking function for easy diagnosis and treatment
- Slender insertion tube that alleviates patient discomfort
- Suction valve retainer, a unique design that prevents the suction valve from falling off (applicable to certain models)
- Rotation, that improves operation flexibility and accuracy.
- IHB Color emphasis, the HT-1415 image processor can enhance the mucosal vascular morphology of the lesion tissue and effectively help improve the clinical lesion recognition rate.
- Intelligent image algorithm, the HT-1415 image processor can realize contour enhancement, dark area enhancement, narrow band imaging and other functions to meet the high needs of doctors.
- The HT-1415 image processor supports real-time picture capture, repot editing, printing and medical record management. Improving the efficiency of both diagnosis and treatment.
- 15.6 inches high-definition touchscreen
Technical Specifications (HT-1415 Image Processor):
| Screen Size: | 15.6 inches |
| Video Standard: | 1920 x 1080 (Full HD) |
| Output Interface: | USB*6, DVI*2, SDI*2 |
| Memory: | 16GB RAM, 512GB ROM |
| Expendable Storage: | 64GB USB Flash Drive |
Product Variations:
| Model: | Insertion Tube: |
Distal End: |
Working Length: |
Field of View: |
Depth of Field: |
Bending (up/down): |
Rotation (left/right): |
| EN-14 plus | 2.1mm | 1.8 / 2.4mm | 300mm | 120° | 3-150 mm |
130°/130° | 120°/120° |
| EN-14X plus | 2.1mm | 1.8 / 2.4mm | 300mm | 120° | 3-150 mm |
130°/130° | No |
| EN-14H plus | 3.1mm | 2.5 / 3.4mm | 300mm | 120° | 3-150 mm |
130°/130° | 120°/120° |
| EN-14HX plus | 3.1mm | 2.5 / 3.4mm | 300mm | 120° | 3-150 mm |
130°/130° | No |
| EN-14T plus | 3.8mm | 2.7 / 4.0mm | 365mm | 120° | 3-150 mm |
130°/130° | 120°/120° |
| EN-14HT plus | 4.8mm | 5.0 / 5.1mm | 365mm | 120° | 3-150 mm |
130°/130° | 120°/120° |
Note on model names:
- with H – higer resolution 800*800 / without H – resolution 720*720
- with X – pistol handle / without X – straight handle
- with T – working channel (2.0mm)
- with plus – with angle lock / without plus – without angle lock
Manufacturer Website:
https://www.seesheen.com/detail/video-endoscopes/129.html
| Model: | EN-14 plus, EN-14X plus, EN-14H plus, EN-14HX plus, EN-14T plus, EN-14HT plus |
|---|
